Vector Optics

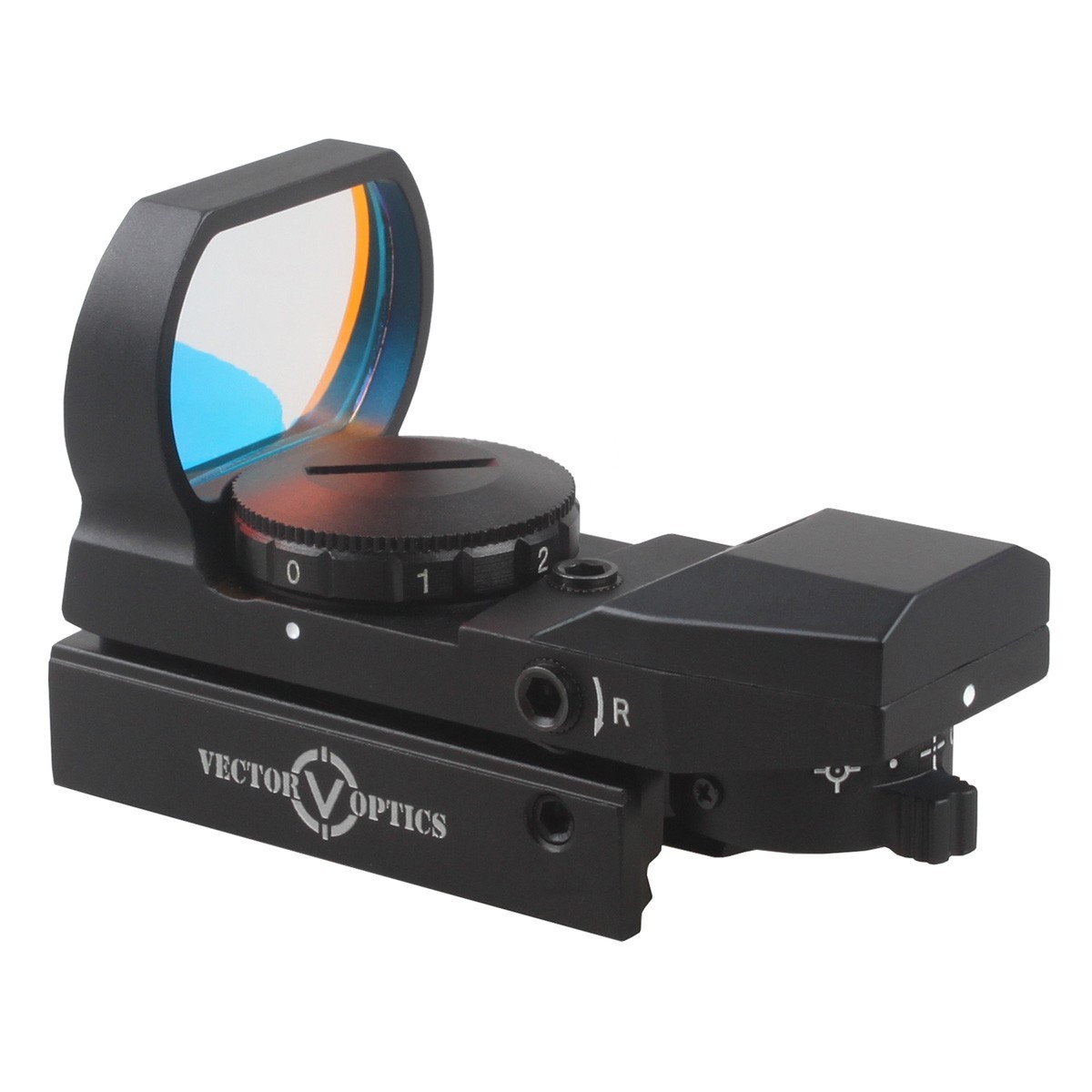

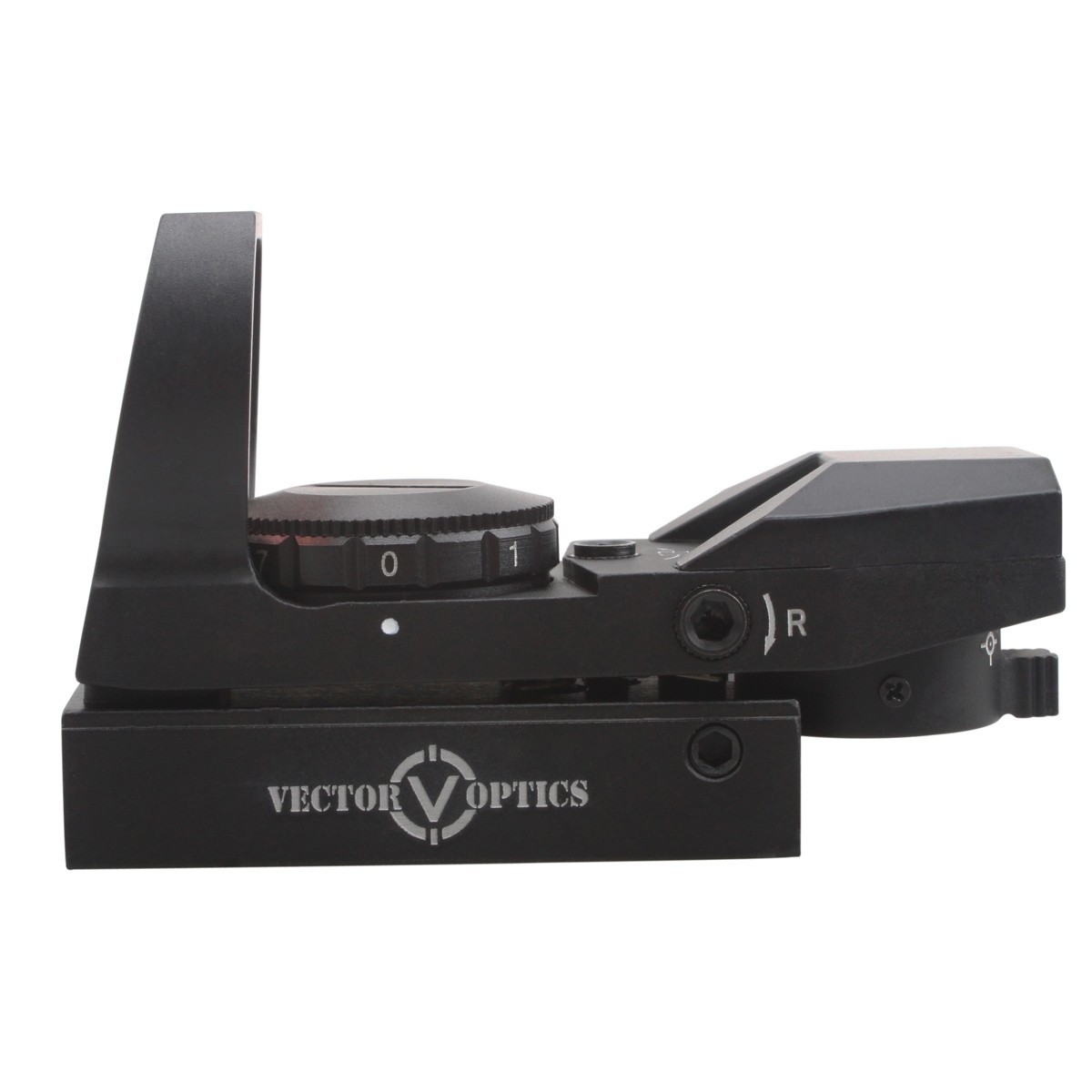

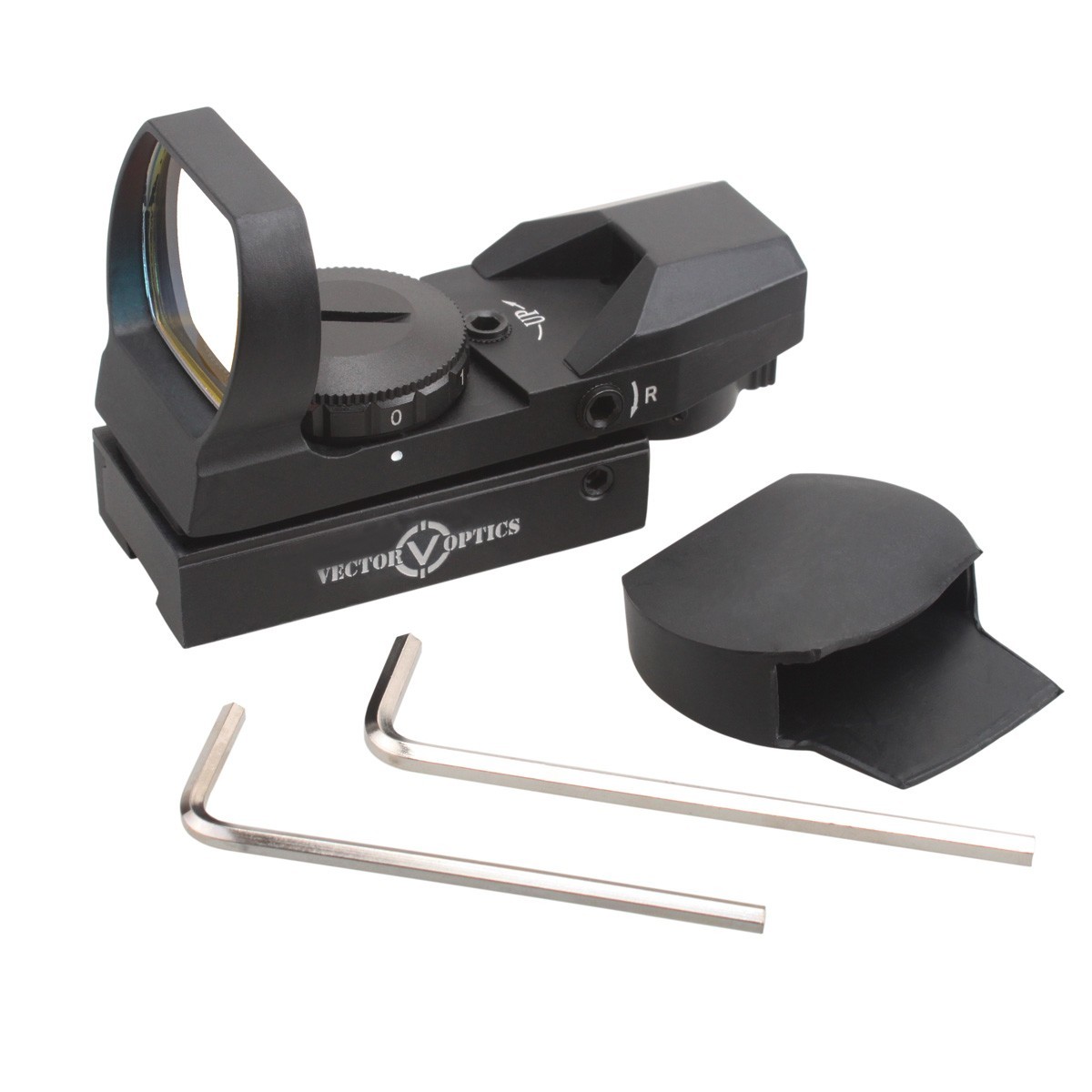

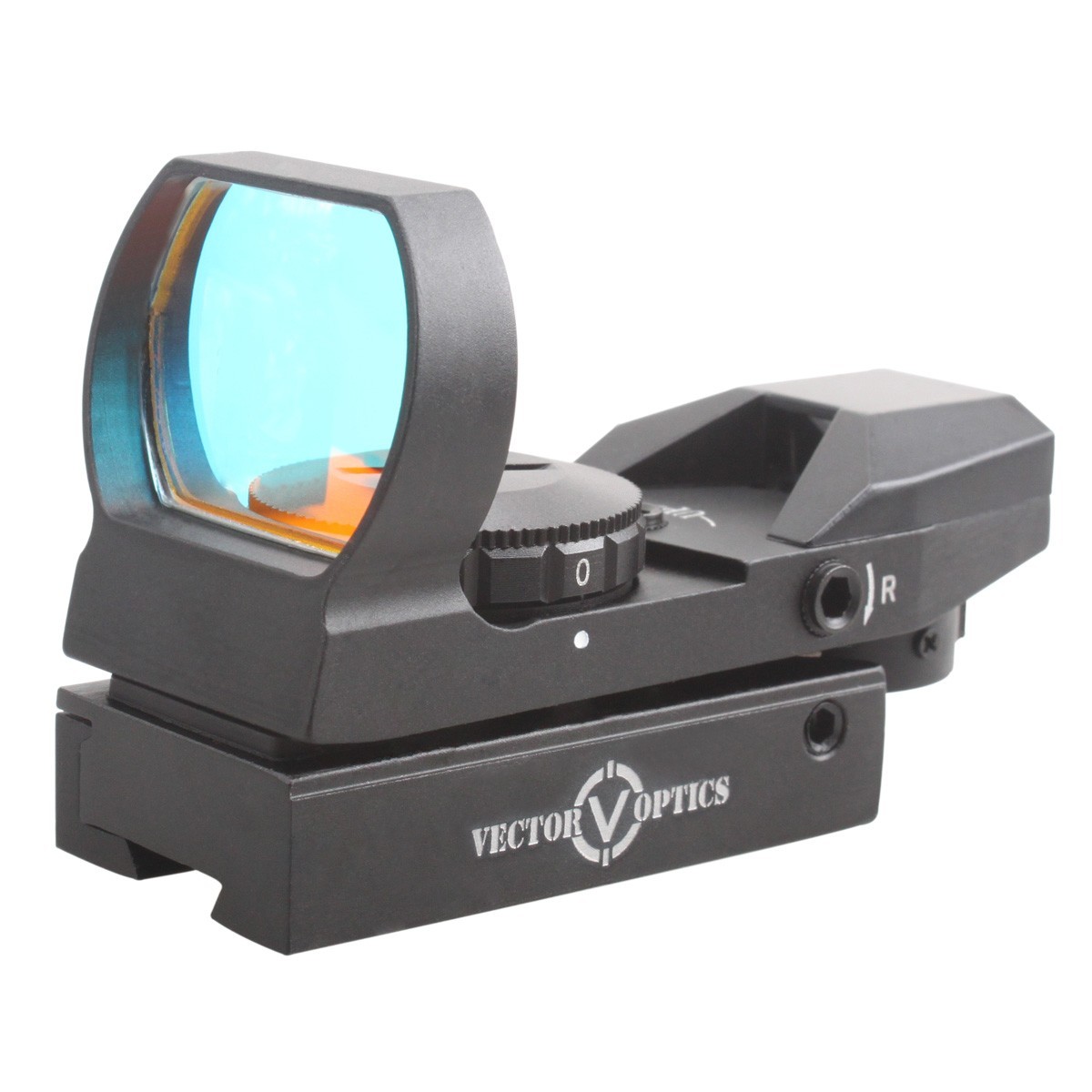

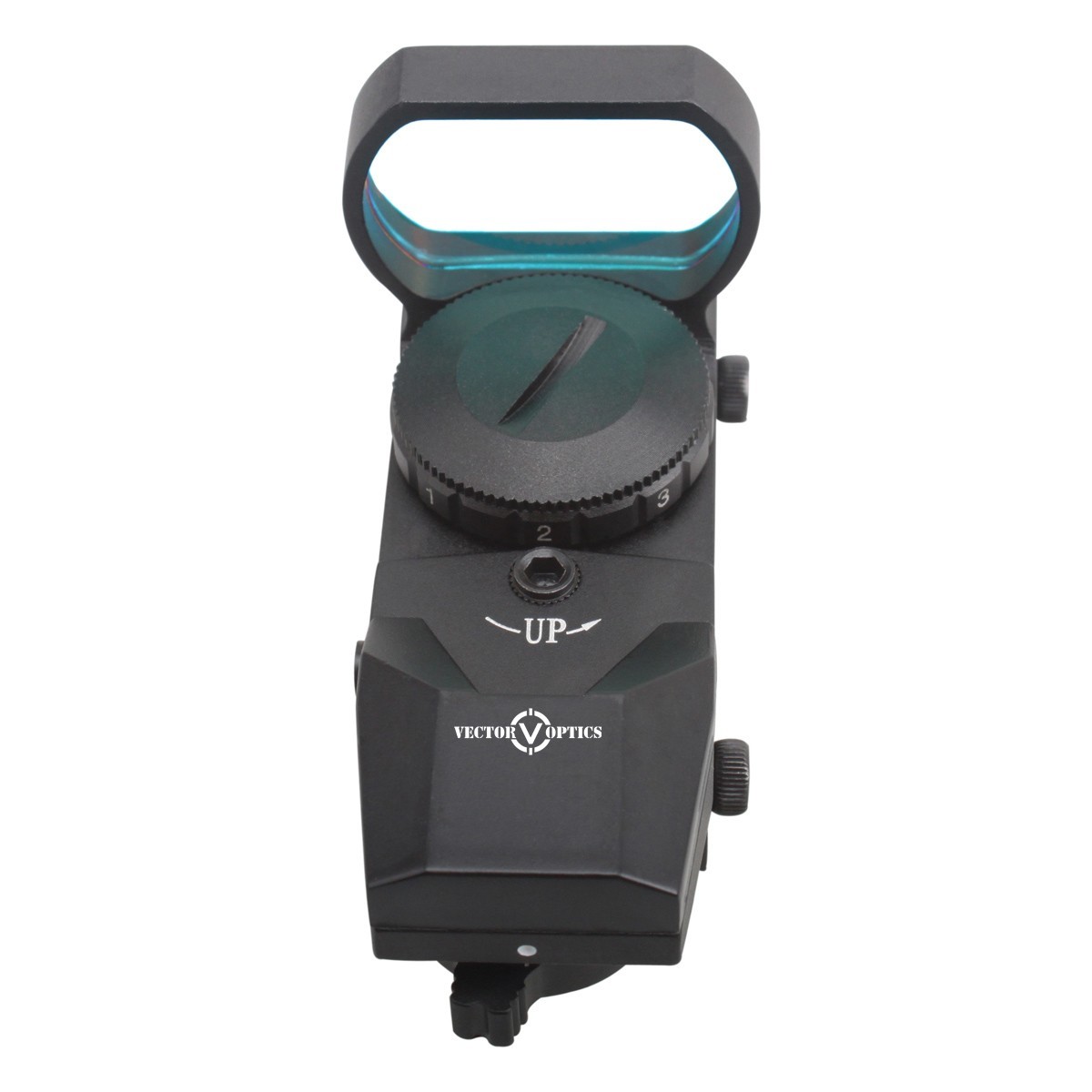

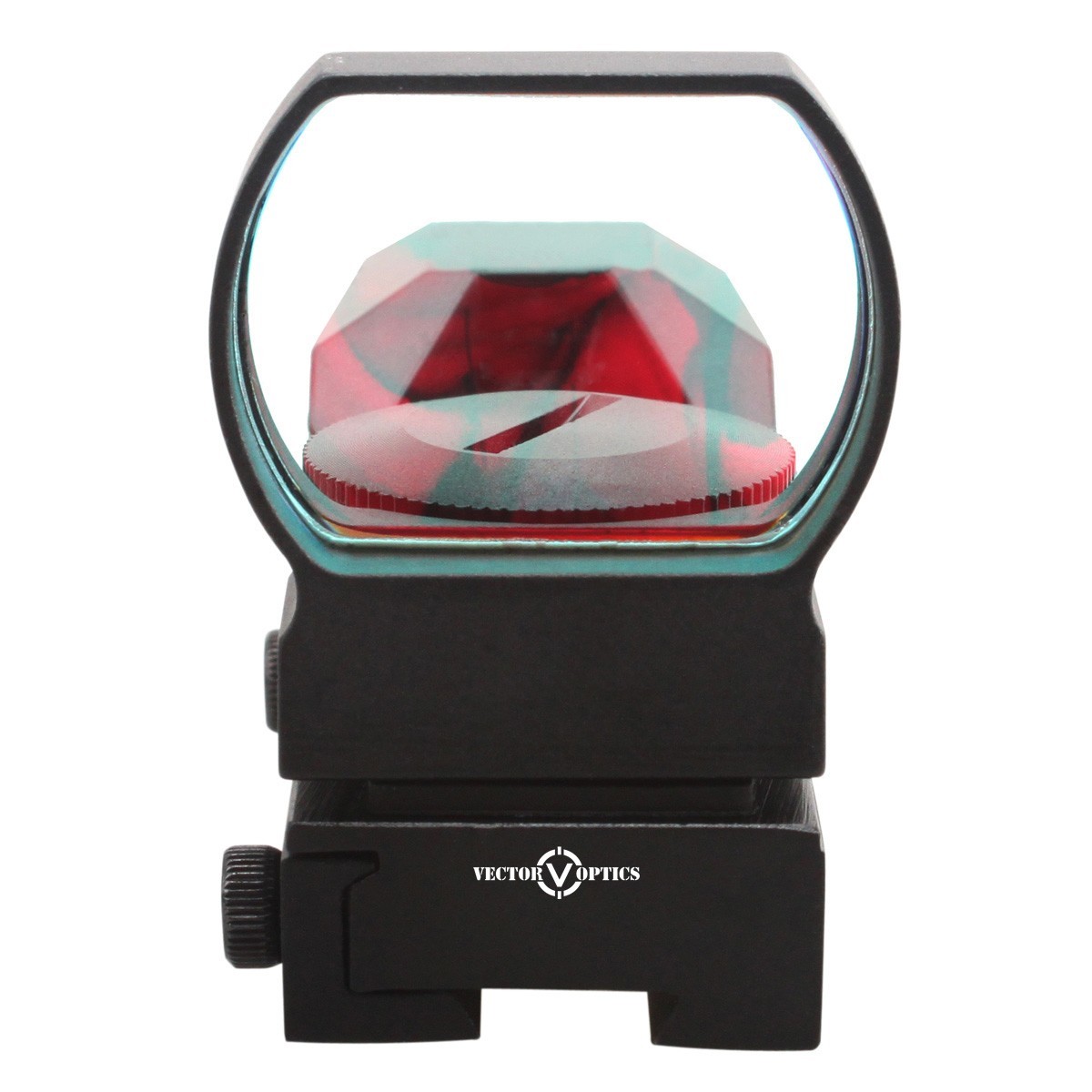

IMP 1x23x34 Reflex Sight Dovetail

11mm Dovetail Mount Base, 4x Reticles, 7 Levels of Brightness, Reticle Lock System.

• Magnification: N/A
• Objective Lens Dia: 23x34mm
• Length: 80mm (3.1 inch)
• Width: 38mm (1.5 inch)
• Weight (net): 110g (3.9 ounce)
• Eye Relief: Free
• Field of View (M@ 100M): 15.7
• Optics Coating: Multi Coated
• Click Value: 1 MOA
• Reticle: 4 patterns
• Elevation Range: 40 MOA
• Windage Range: 40 MOA
• Illumination: 7 levels red
• Battery: CR2032
• Mounting: 11mm dovetail
• Reticle: Four kinds of reticles; reticle exchange with audible click
• Shock tested to 700g, Rain Proof and Fog Proof
• High quality 6063 T6 aircraft grade aluminum
• With reticle lock feature
• Integrated 11mm dovetail mount
• To exchange battery:
• Use coin to release the cap
• Take out the used battery
• Exchange with 1 pc CR2032 battery
• Refasten the cap
